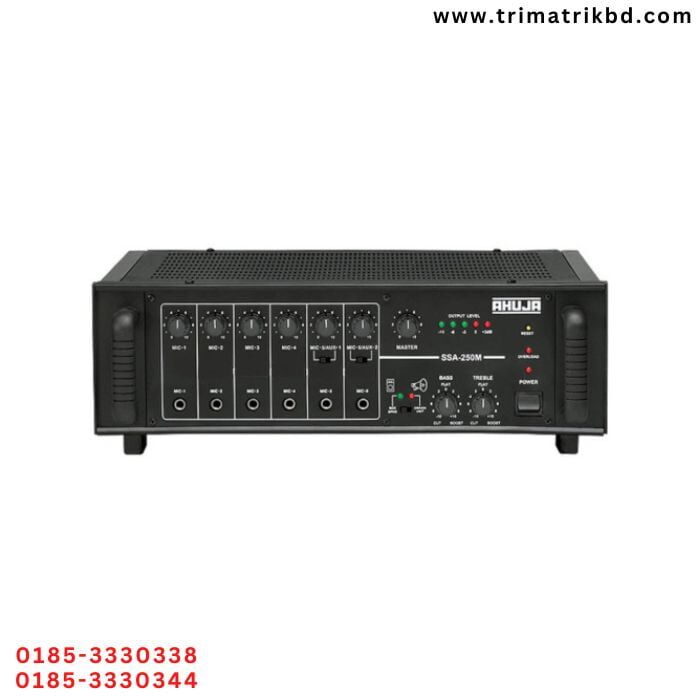

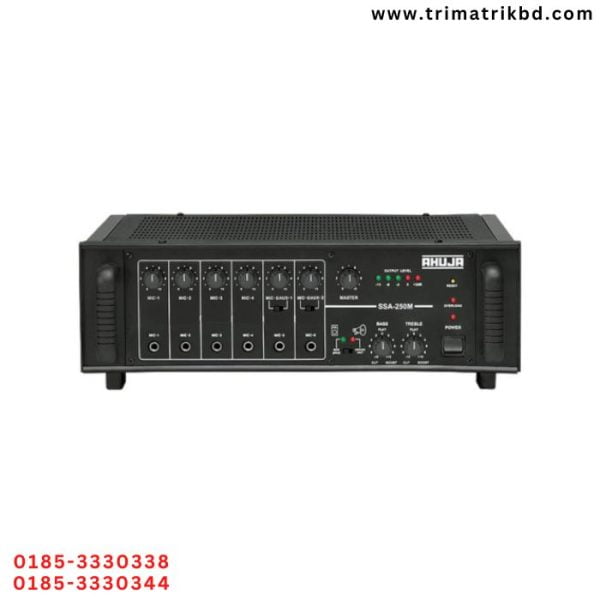

SSA-250M 250Watts High Power PA Amplifier
♦ Ahuja Amplifier SSA-250M
♦ 250 WATTS
♦ Easy to Use
♦ Black Color
♦ AC & 24V DC Operation
♦ 6 Mic & 2 Aux Inputs.
♦ Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
♦ Line Input for connecting the output from any external mixer or permitting SSA-250 to be used as a Booster Power Amplifier.
♦ Resettable circuit breaker for protection against overload and short circuit.
♦ Instant transfer to DC power (Car Battery) if AC power fails.
♦ Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
♦ 12 Months
♦ 16 kg
Ahuja SSA-250M 250Watts High Power PA Amplifier
Brand | Ahuja |
Model | Ahuja Amplifier SSA-250M |
Type | Amplifier |
Amplifier Type | Ahuja High Power PA Amplifier |
Power Output | 300W Max., 250W RMS at 10% THD, 220W RMS at 5% THD, 200W RMS at 2% THD |
Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
Input Channels | 6 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470 kΩ, 1 × Line 1V/50kΩ |
Frequency Response | 50-15,000Hz ±3dB |
Signal to Noise Ratio | 60dB |
Tone Controls | Bass & Treble ±6dB at 100Hz & 10kHz for Mic 1 – 6 & Aux 1&2 |
Outputs | Preamp 200mV/600Ω, Line 1V/1kΩ |
Speaker Outputs | 4Ω, 8Ω, 70V & 100V |
Power Supply | AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) |
Power Consumption | AC: 460VA DC: 6A |
Dimensions | W450 × H160 × D340 mm |
Weight | 16.0kg |
Number Of Items | 1 |
Color | Black |
Warranty | 12 Month |
