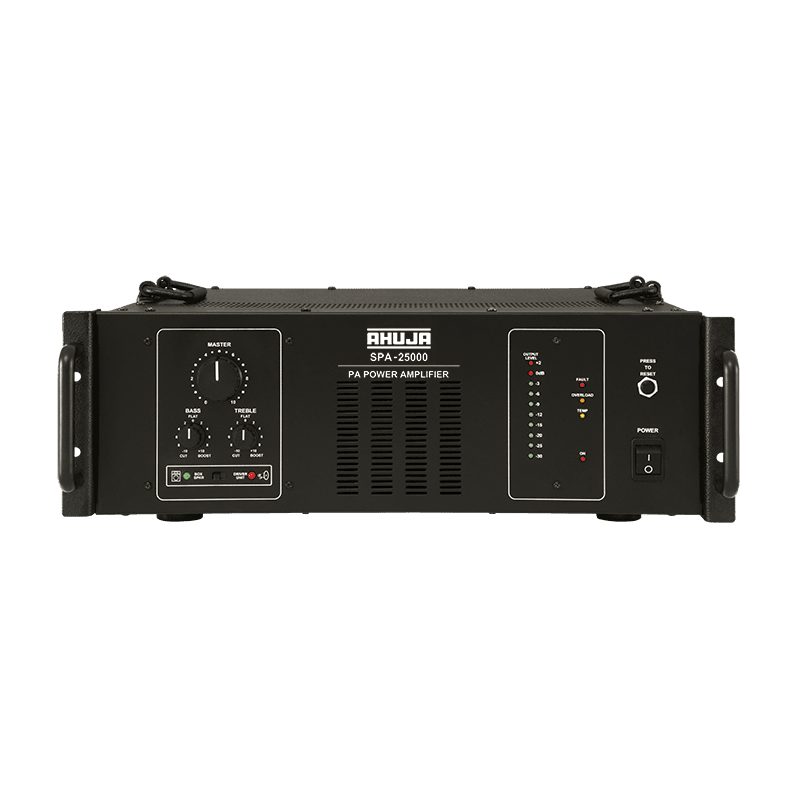

Ahuja SPA-25000 2500 WATTS High Wattage PA Power Amplifier
- Super high power single channel PA booster amplifier, specially designed for big installations where large number of speakers are required. Class H operation for optimum efficiency
- Line Input 200mV/1V switchable for connecting a mixer or another amplifier.
- 100V input for connecting to another amplifier 100V output.
- Built-in circuit for protection against overload, short circuit and temperature.
- Built-in protection against overvoltage in AC mains supply which is specially useful while operating on a genset.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
- 100V/70V, 4W and 2W power outputs
- Ideal for large installations where very high power output is required.
|Power Output||3000W Max., 2500W RMS at 10% THD 2300W RMS at 5% THD, 2150W RMS at 2% THD|
|Output Regulation||≤ 2 dB, no load to full load at 1kHz|
|Input Channels||1 × Line 200mV/20kΩ balanced, 10kΩ unbalanced, 1 × Line 1V/20kΩ balanced, 10kΩ unbalanced, 1 × 100V Input/50kΩ|
|Frequency Response||50-15,000Hz ±3dB|
|Signal to Noise Ratio||75dB|
|Tone Controls||Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz|
|Speaker Outputs||2Ω, 4Ω, 70V & 100V|
|Power Supply||AC: 220-240V 50/60Hz|
|Power Consumption||AC: 3400VA|
|Dimensions||W520 × H185 × D595 mm|
