|Power Output||220W Max., 160W RMS at 10% THD, 140W RMS at 5% THD, 120W RMS at 2% THD|
|Output Regulation||≤ 2 dB, no load to full load at 1kHz|
|Input Channels||5 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470 kΩ|
|Frequency Response||50-15,000Hz ±3dB|
|Signal to Noise Ratio||60dB|
|Tone Controls||Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz|
|Output||Preamp 200mV/600Ω, Line 1V/1kΩ|
|Speaker Output||4Ω, 8Ω, 70V & 100V|
|Digital Player||MP3 Player with USB, SD and MMC Card Reader|
|Power Supply||AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)|
|Power Consumption||AC: 300VA DC: 4A|
|Dimensions||W420 × H155 × D320 mm|

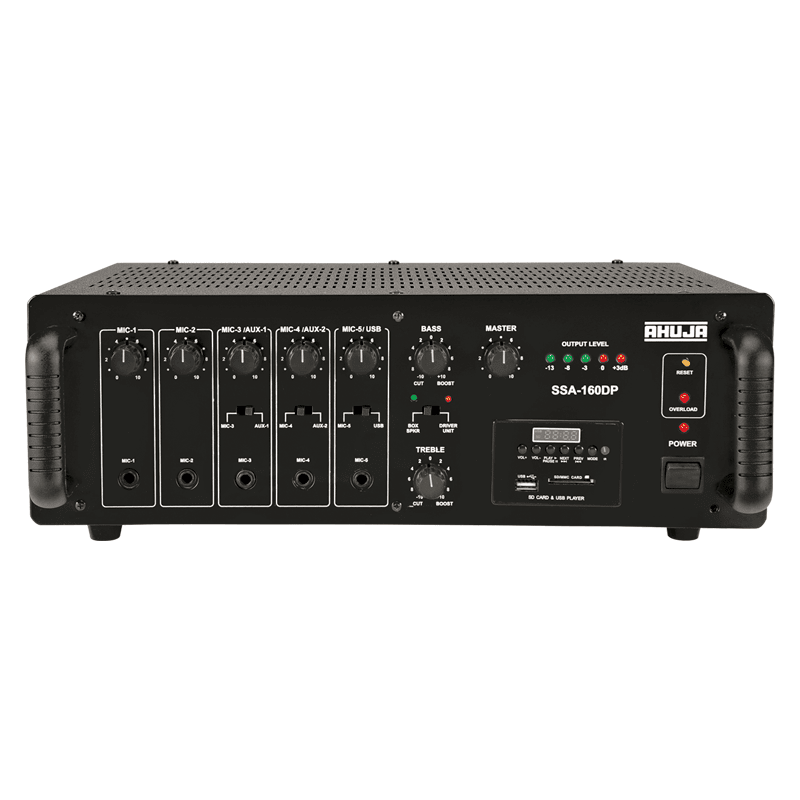

Ahuja SSA-160DP 160 WATTS WITH BUILT-IN DIGITAL PLAYER MEDIUM WATTAGE PA MIXER AMPLIFIER
Roll over image to zoom in
Click to open expanded view
- 5 Mic & 2 Aux Inputs.
- Built-in MP3 player with remote control for USB, SD/MMC card reader.
- Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
- Line Input for connecting the output from any external mixer or permitting SSA-160DP to be used as a Booster Power Amplifier.
- Resettable circuit breaker for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
- 5 LED array for output level monitoring.
