|Power Output||750W Max., 500W RMS at 10% THD 450W RMS at 5% THD, 415W RMS at 2% THD|
|Output Regulation||≤ 2 dB, no load to full load at 1kHz|
|Input Channels||7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/470 kΩ,1 × CD 200mV/50 kΩ, 1 × Line 1V/50kΩ|
|Frequency Response||50-15,000Hz ±3dB|
|Signal to Noise Ratio||60dB|
|Tone Controls||Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz|
|Output||Preamp 200mV/600Ω, Line 1V/1kΩ|
|Speaker Output||4Ω, 8Ω, 70V & 100V|
|Digital Player||MP3 Player with USB, SD and MMC Card Reader|
|Power Supply||AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)|
|Power Consumption||AC: 1000VA DC: 8A|
|Dimensions||W510 × H172 × D385 mm|

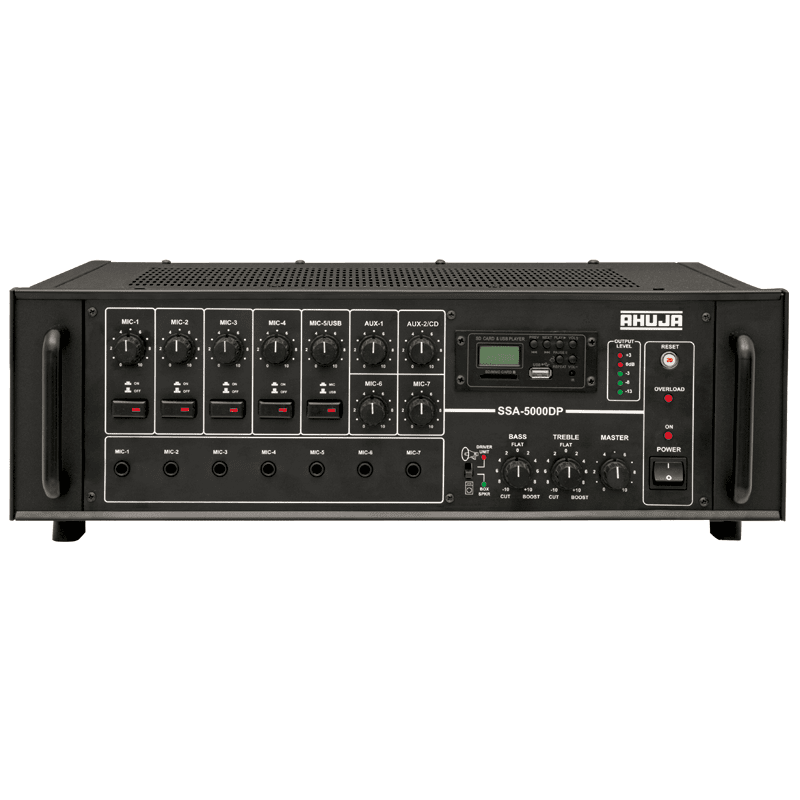

Ahuja SSA-5000DP 500 WATTS with Built-in Digital Player High Wattage PA Mixer Amplifier
Roll over image to zoom in
Click to open expanded view
- 7 Mic & 2 Aux Inputs.
- Built-in MP3 player with remote control for USB, SD/MMC card reader.
- Preamplifier and Line Output for connecting to a Booster Amplifier.
- Line Input for connecting the output from any external mixer or another amplifier.
- Resettable circuit breaker for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
