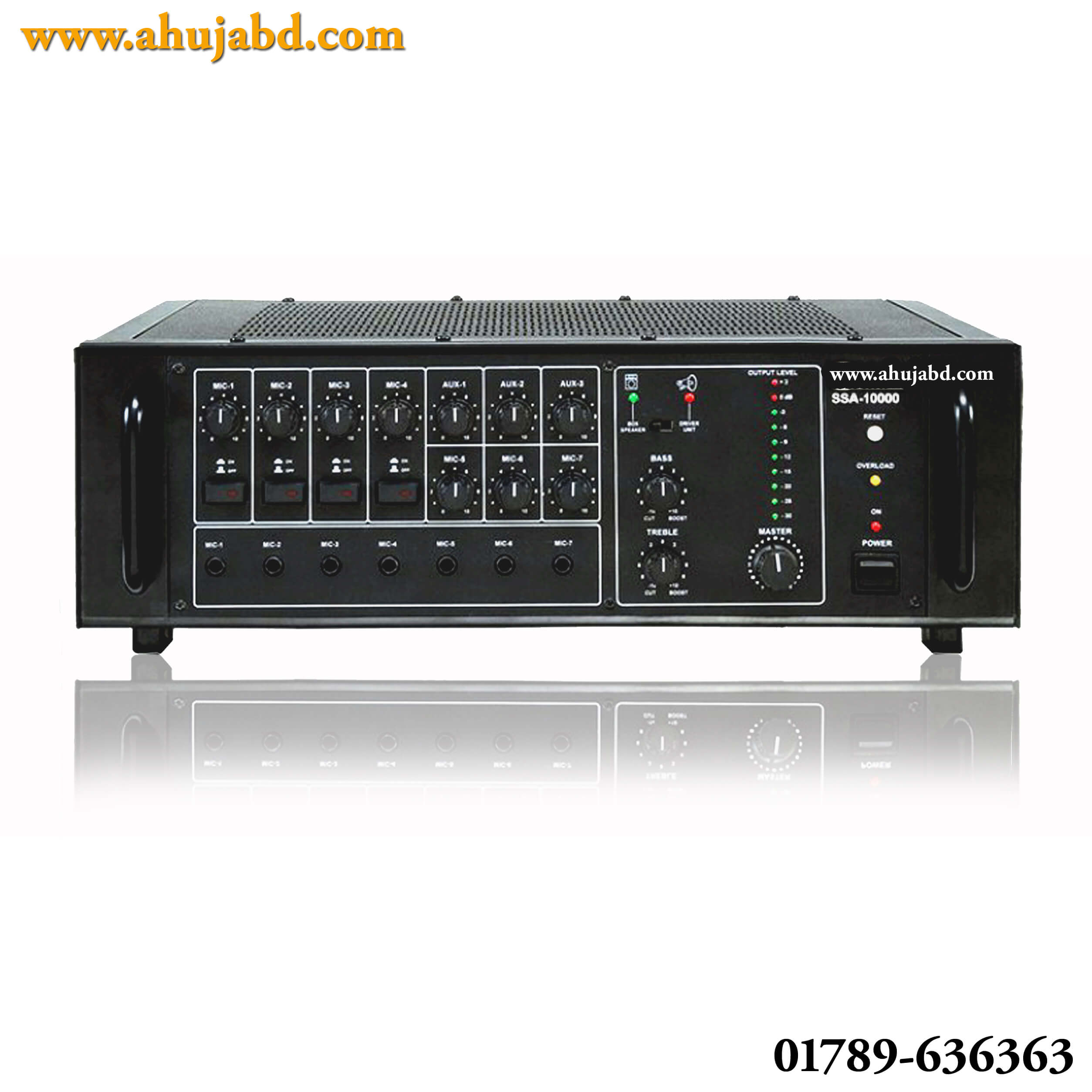

Ahuja SSA-10000 1000 WATTS High Wattage PA Mixer Amplifier
♦ 1000 WATTS
♦ AC & 48V DC Operation
♦ 8 Mic & 4 Aux Inputs.
♦ Aux-4 input is through RCA socket
♦ Resettable circuit breaker & MCB at back for protection against overload and short circuit.
♦ Box Speaker/Driver Unit selector switch.
♦ Bass boost defeated at Driver Unit position for safer operation of driver units.
♦ Warranty: One Year
- SSA-10000 is a multi application high Power PA Amplifier capable of delivering 1000 Watts, ideal for driving high power sub-woofers as well as large PA Installations involving large number of speakers. This amplifier is designed to give high power, clean sound and reliable, trouble free operation under extreme climatic & weather conditions. Features include 8 microphone and 4 aux inputs (one of which is through RCA jacks and specially meant for CD/DVD Players). In addition resettable circuit protector, ±10dB Cut/Boost Bass/Treble controls and AC/48V battery operation are provided.
- 8 Mic & 4 Aux Inputs.
- AUX-4 input is through RCA Socket, specially for connecting CD/DVD Player.
- Line Input & Output provided for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording.
- Cut-boost type Bass/Treble controls.
- Box Speaker/Driver Unit selector switch. Bass boost can be defeated at Driver Unit position for safer operation of driver units.
- Instant transfer to DC power (Car Battery) if AC power fails.
- 10 LED Bar Graph Signal Level Display.
|1350W Max., 1000W RMS at 10% THD|
|850W RMS at 5% THD, 800W RMS at 2% THD|
|2 dB, no load to full load at 1kHz|
|8 × Mic 0.8mV/4.7k, 3 × Aux 100mV/50k|
|1 × Aux 250mV/50k|
|1 × Line 1V/50k|
|50 – 15000Hz ±3dB|
Signal to Noise Ratio
|Bass:±8dB at 100Hz Treble:±8dB at 10kHz|
|Preamp 200mV/600, Line 1V/1k|
|2 & 4, 70V & 100V|
|AC:220 – 240V 50/60Hz / DC:48V (4 × 12V Car Battery)|
|AC:2000VA / DC:12A|
|W540 × H185 × D510 mm|
