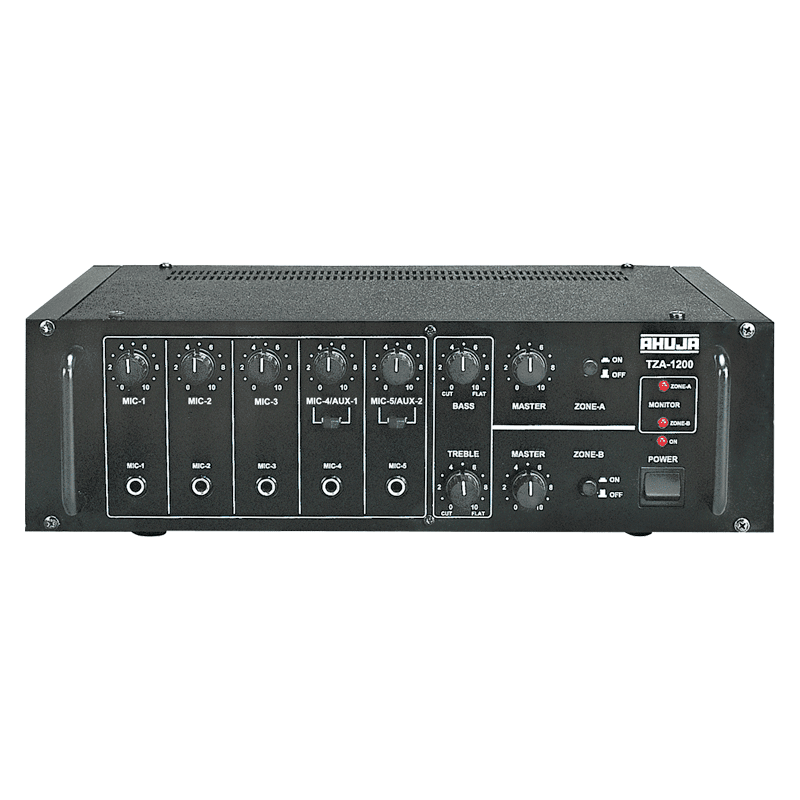

Ahuja TZA-1200® 120 WATTS 2 ZONE PA MIXER AMPLIFIER

  • 5 Mic & 2 Aux Inputs.
  • 60W+60W power output.
  • Connecting two groups of speakers, preamplifier output, bass and treble controls, zone On/Off facility, AC/DC operation have been provided.
  • TZA-1200 is suitable for small sized installations such as in places of worship where both external and internal speakers are required to be connected with different sound level settings.

Power Output 90W + 90W Max., 60W + 60W RMS at 10% THD, 55W + 55W RMS at 5% THD, 50W + 50W RMS at 2% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels 5 × Mic 0.6mV/4.7kΩ, 1 × Aux 100mV/470 kΩ, 1 × Aux 200mV/250kΩ (RCA Jack)
Frequency Response 70-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: -10dB at 100Hz, Treble: -10dB at 10kHz
Outputs Preamp 200mV/600Ω
Speaker Outputs 4Ω, 8Ω, 16Ω & 100V for each zone
Power Supply AC: 220-240V 50/60Hz DC: 12V (12V Car Battery)
Power Consumption AC: 250VA DC: 5A
Dimensions W400 × H130 × D290 mm
Weight 10.1kg
