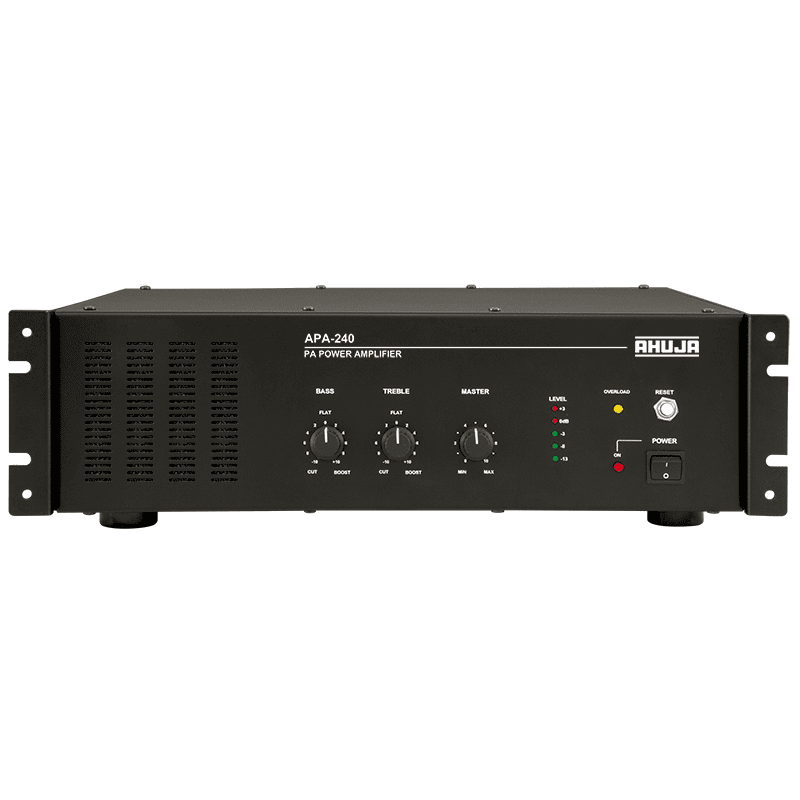

Ahuja APA-240 325 WATTS Installation PA Power Amplifier

Roll over image to zoom in
Click to open expanded view

In stock

  • High quality booster amplifier in standard 19” rack mountable chassis, suitable for both table-top use and rack mounting. Ideal for fixed installations and a wide variety of PA applications such as in departmental stores, schools, hospitals etc.
  • 1x Line 200mV unbalanced input and 2xLine 1V balanced inputs through XLR connector, one 1V input having priority over all other inputs.
  • 100V input is provided for connecting another amplifier’s output in long line applications.
  • Ground lift switch provided at rear panel which helps reducing the hum that occures due to multiple ground loops in the installations.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Loop through output for connecting another booster amplifier.
  • 19” Rack mountable chassis.
  • Instant transfer to DC power (Car Battery) if AC power fails.
Category: Tag:

Ahuja APA-240

Power Output 415W Max., 325W RMS at 10% THD, 300W RMS at 5% THD, 275W RMS at 2% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels 1 × 200mV/470kΩ (unbal.), 2 × 1V/50kΩ (bal.), 1 × 100V Input
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs Loop through 1 × 200mV/600W, 2 ×1V/1kW
Speaker Outputs 4Ω, 8Ω, 70V & 100V
Power Supply AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
Power Consumption AC: 600VA DC: 7A
Dimensions W485 × H142 × D405 mm
Weight 20.6kg
