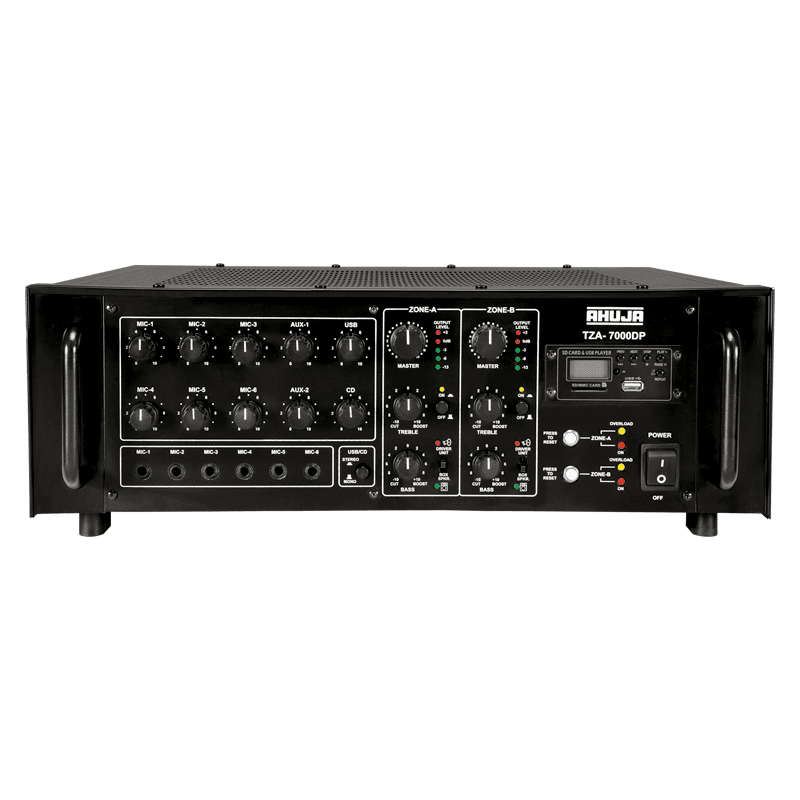

Ahuja TZA-7000DP 700 WATTS with Built-in Digital Player 2 ZONE PA MIXER AMPLIFIER

In stock

  • 6 Mic, 2 Aux Inputs and CD/Stereo music input (L&R)
  • Built-in MP3 player with remote control and LCD display for USB, SD/MMC card reader.
  • Stereo/Mono switch to change ambience of MP3 music player & CD/Stereo music for DJ programmes.
  • Facilitates connection and operation of two separate groups of speakers simultaneously. Ideal for Places of Worship.
  • Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording.
  • Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
Power Output 500W + 500W Max., 350W + 350W RMS at 10% THD, 300W + 300W RMS at 5% THD, 280W + 280W RMS at 2% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels Mic/Aux 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo Music Mode: L/R 200mV/100kΩ, Line L/R 1V/20kΩ
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Output Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Output 4Ω, 8Ω, 70V & 100V for each zone
Digital Player MP3 Player with USB, SD and MMC Card Reader
Power Supply AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)
Power Consumption AC: 1100VA DC: 13A
Dimensions W510 × H185 × D470 mm
Weight 40.0kg
