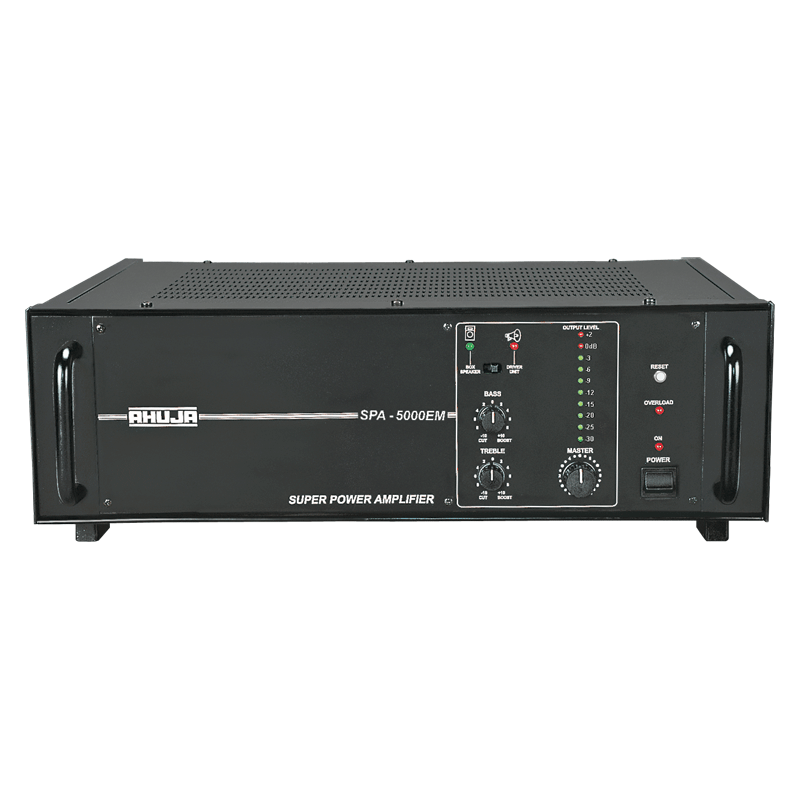

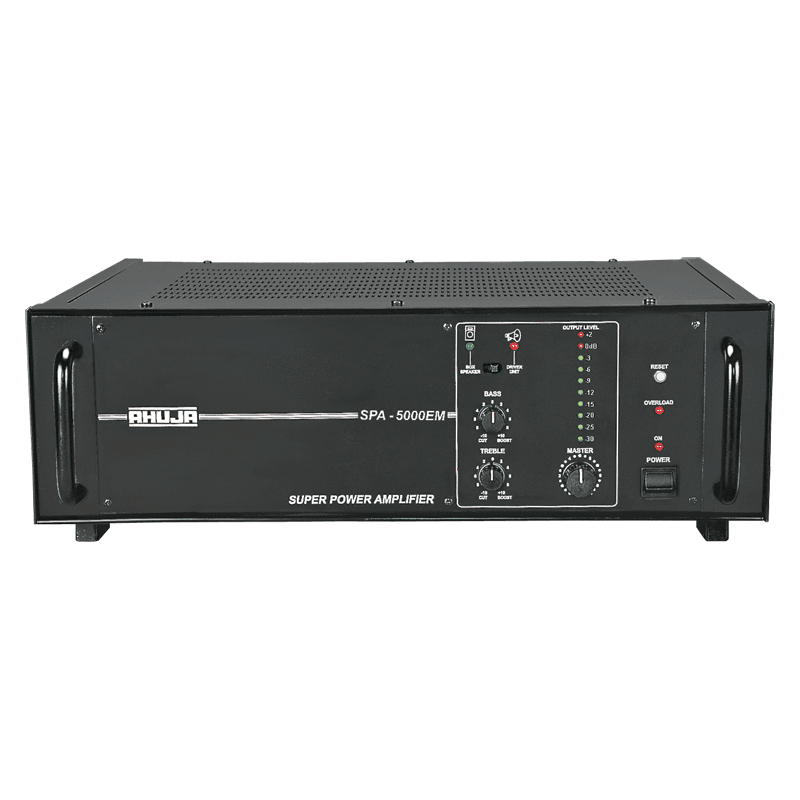

Ahuja SPA-5000®EM 500 WATTS High Wattage PA Power Amplifier

  • Line Input 200mV/1V switchable for connecting a mixer or another amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
  • Ideal for large installations where a high power output is required. A combination of a SSA-5000EM and one SPA-5000EM can deliver 1000W power output.

Power Output 750W Max., 500W RMS at 10% THD, 450W RMS at 5% THD, 415W RMS at 2% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels 1 × Line 200mV/100kΩ, 1 × Line 1V/50kΩ
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Speaker Outputs 4Ω, 8Ω, 70V & 100V
Power Supply AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)
Power Consumption AC: 1000VA DC: 8A
Dimensions W510 × H172 × D385 mm
Weight 25.7kg
