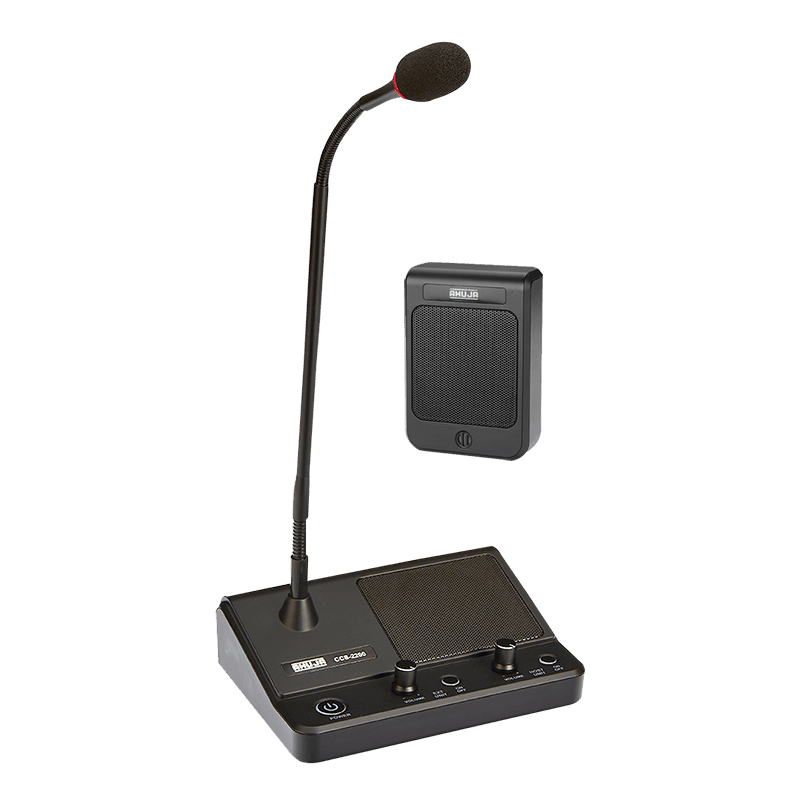

Ahuja CCS-2200 COUNTER COMMUNICATION SYSTEM AC Operation

Ahuja CCS-2200 COUNTER COMMUNICATION SYSTEM AC Operation
Roll over image to zoom in
Click to open expanded view

In stock

  • Unique design, pleasing aesthetics & rugged construction.
  • Duplex communication technology, ideal for ticket counters, enquiry counters, banks, embassies, hospitals etc. …. Wherever two way communication is required across a glass barrier. (Can also be used for one way communication).
  • Compact & elegant Attendant Unit with gooseneck microphone, in black colour finish, for flexible sound pickup angle.
  • Separate switches for switching the Host Unit mic, or the External Unit mic, ON or OFF.
  • Separate volume controls on the Host Unit for adjusting the audio output level of the Host Unit and the External Unit.
  • Host Unit mic has automatic voice priority over the External Unit mic. When attendant is speaking into the Host Unit mic, the mic of the External unit is automatically muted.
  • Exclusively designed lightweight plastic external unit, which can be easily mounted on any flat surface. Double sided fixing pad provided.
  • External unit houses a condenser mic cartridge and an efficient speaker for clear and intelligible sound outside the glass barrier.
  • Audio output for recording available through 3.5mm phone jack on the Host Unit. This is a stereo output having signals from both the Host Unit mic and the External Unit mic.
  • A 3.5mm phone jack is provided on the rear panel of the Host Unit for Line Input. This feature can be used to play back pre-recorded messages through the external unit speaker by connecting the Pre-amp output or Line Output of any Ahuja amplifier to the Line Input of the Host Unit.
  • The system is easy to install and simple to operate.
  • The Host Unit is a table top unit which operates on 12V DC, through an AC adapter supplied alongwith.
Categories: , Tag:

Ahuja CCS-2200

Output 2 × 5W (Max.) in each amplifier
Microphone Element Electret Condenser in both the units.
Frequency Response 100Hz-10KHz
Power Requirement AC: 220-240V, 50/60Hz
Speaker impedance 4Ω each
Dimensions Host Unit : W179.7 x H129.8 x D56.5mm, External Unit : W117.8 x H83.7 x D38.9mm
Weight Host Unit : 590g approx., External Unit : 190g approx.
Accessories 1 PC Host Unit, 1 PC External Unit, 1 PC AC adapter, 1 PC User Manual, 1 PC Adhesive Foam,1 PC Rubber Strip
