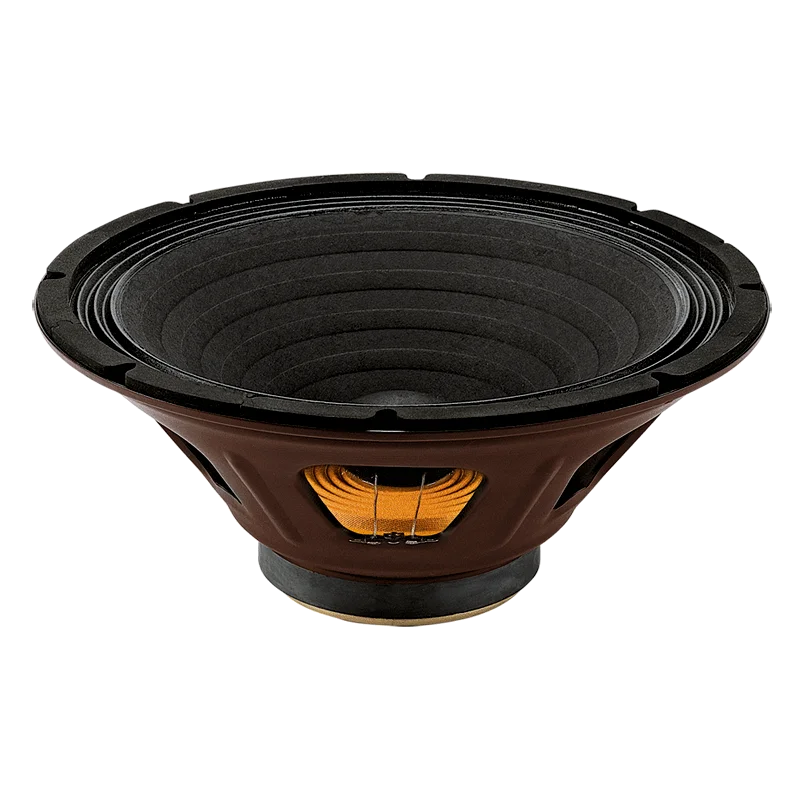

Ahuja AS15-X200 200 WATTS Professional PA Speaker

In stock

  • Sturdy pressed metal frame in elegant brown colour.
  • Special high temperature voice coil for exceptional thermal capabilities.
  • Suitable for use in compact 2-way sealed as well as bass reflex enclosures.
  • Excellent low frequency response makes it ideal for
  • Dandiya-Ras, DJs & General PA applications.

Ahuja AS15-X200

Power Rating200W RMS
Nominal Diameter380 mm (15”)
Nominal Impedance8Ω
Sensitivity (1W/1m )98dB
Magnet Weight1.54kg
Resonant FrequenceY (Fs)45Hz
DC resistance (Re)6.0Ω
Electromagnetic Q (Qes)0.58
Mechanical Q (Qms)9.6
Total Q (Qts)0.54
Compliance Equivalent Volume (VAS)115 Litr
Surface Area of Cone (Sd)830cm2
Reference Efficiency (ηo)2.1%
Voice Coil2.0”
Overhang (Xmax)3.5 mm
Moving Mass (Mms)73gm
BL Product (BL)13.4TM
Overall Diameter385 mm
Depth165 mm
Baffle Hole Diameter355 mm
Bolt Mount Diameter (PCD)373 mm (8 Bolts)
Weight4.9kg
