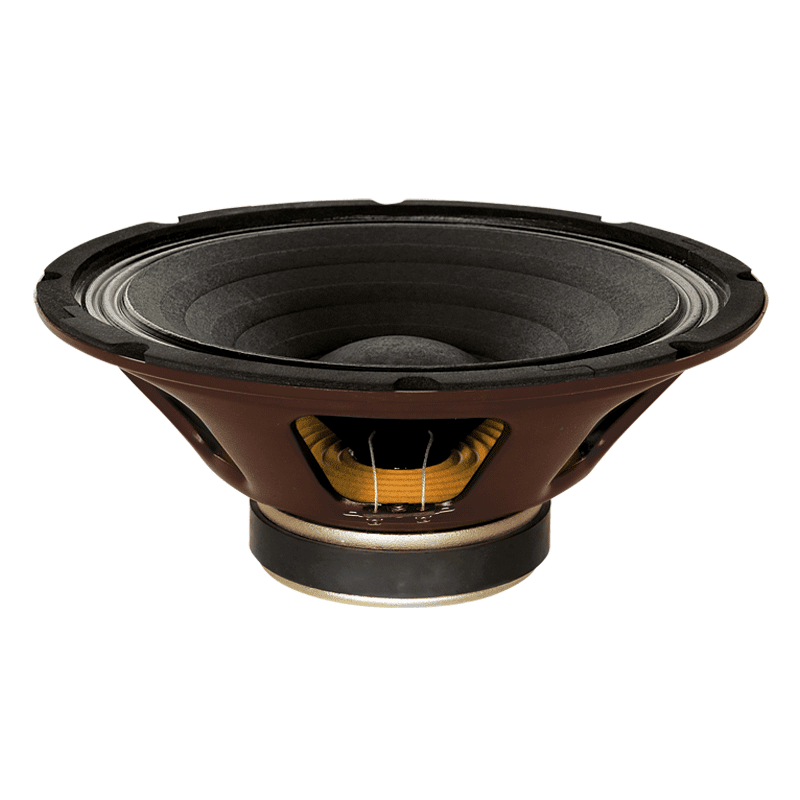

Ahuja AS12-X100 100 WATTS Professional PA Speaker

In stock

  • Sturdy pressed metal frame in elegant brown colour.
  • Kapton former voice coil for withstanding high temperature.
  • Suitable for use in compact 2-way sealed as well as bass reflex enclosures.
  • Excellent low frequency response makes it ideal for Dandiya-Ras, DJs & General PA applications.

Ahuja AS12-X100

Power Rating100W RMS
Nominal Diameter305 mm (12”)
Nominal Impedance8Ω
Sensitivity (1W/1m )97dB
Magnet Weight1.1kg
Resonant FrequenceY (Fs)70Hz
DC resistance (Re)6.0Ω
Electromagnetic Q (Qes)0.79
Mechanical Q (Qms)5.5
Total Q (Qts)0.69
Compliance Equivalent Volume (VAS)74.23 Litr
Surface Area of Cone (Sd)510cm2
Reference Efficiency (ηo)3.09%
Voice Coil1.5”
Overhang (Xmax)2.0mm
Moving Mass (Mms)25.5gm
BL Product (BL)9.2TM
Overall Diameter311 mm
Depth130 mm
Baffle Hole Diameter285 mm
Bolt Mount Diameter (PCD)292 mm (8 Bolts)
