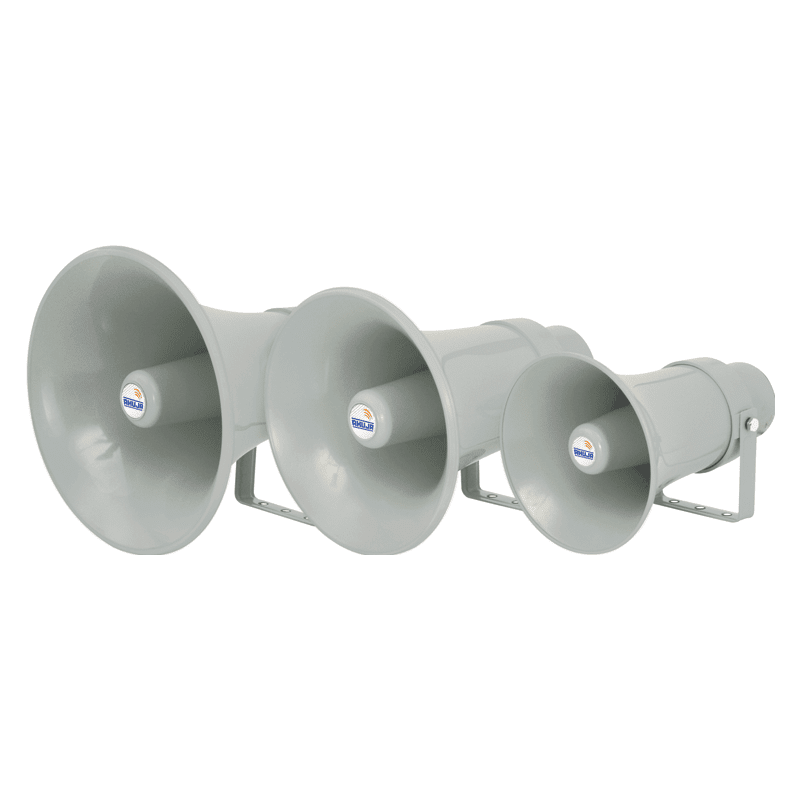

Ahuja UHC SERIES 100V PA Horn Speakers

In stock

  • Ahuja high quality, weather proof horn speakers are compact, light weight and rugged. They are moulded in tough UV protected ABS plastic for longer lasting finish.
  • The specifications and construction of these are similar to the low impedance horn speakers. These models have been provided with 100V line matching transformers with multiple taps/impedance easily selectable by changing the position of the rotary switch at the rear of the sealed assembly.
  • These 100V models are ideal for installations where long speaker cables are used, to avoid power loss in the cables.
  • They meet European Union regulations and comply with low voltage directive standard EN 60065. Degree of protection
  • IP 66 is provided against foreign particles such as dust and jets of water, thus making them ideal for outdoor use.


UHC-30XT .
Input Power 30W RMS/45W Max.
Power Taps 30/25/20/15/10/5W
Impedance 330/400/500/670/1k/2kΩ
Frequency Response 240-10,000Hz
SPL at 1kHz 108dB/1W/1m, 123dB/30W/1m
Dimensions ø313 (L315) mm
Weight 2.39kg
Material ABS (UV Protected)
UHC-25XT .
Input Power 25W RMS/38W Max.
Power Taps 25/20/15/10/5W
Impedance 400/500/670/1k/2kΩ
Frequency Response 250-10,000Hz
SPL at 1kHz 108dB/1W/1m, 122dB/25W/1m
Dimensions ø274 (L310) mm
Weight 2.34kg
Material ABS (UV Protected)
UHC-15XT .
Input Power 15W RMS/23W Max.
Power Taps 15/10/5/2.5W
Impedance 670/1k/2k/4kΩ
Frequency Response 275-7,000Hz
SPL at 1kHz 106dB/1W/1m, 118dB/15W/1m
Dimensions ø205 (L270) mm
Weight 1.78kg
Material ABS (UV Protected)
