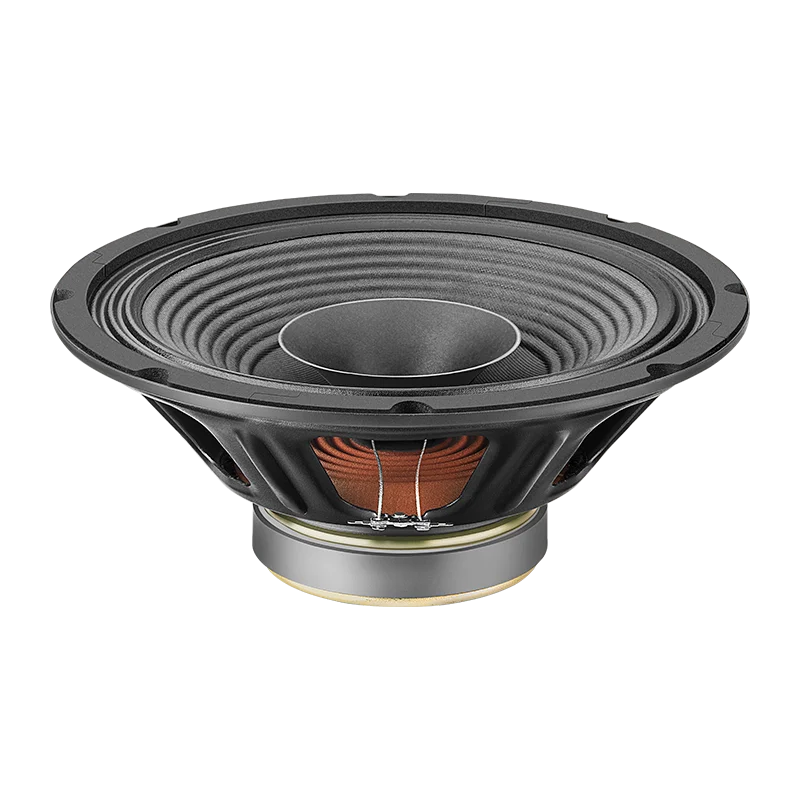

Ahuja SK-12FR®X/FR®Z 100 WATTS Professional PA Speaker

In stock

  • They are 12″ dual cone full range PA speakers with a very wide frequency range 55-16,000Hz.
  • Impedance of SK-12FRX is 8Ω and SK-12FRZ is 16Ω.
  • High quality specially designed imported parts for low distortion and a clean transparent sound.

Ahuja SK-12FR®X/FR®Z

Power Rating100W RMS
Nominal Diameter305mm (12”)
Nominal Impedance8Ω/16Ω
Sensitivity (1W/1m )97dB
Magnet Weight1.1kg
Resonant FrequenceY (Fs)50Hz
DC Resistance (Re)6.4Ω/13.0Ω
Electromagnetic Q (Qes)0.758
Mechanical Q (Qms)9.36
Total Q (Qts)0.7
Compliance Equivalent Volume (VAS)104 Litr
Surface Area of Cone (Sd)510cm2
Reference Efficiency (ηo)1.7%
Voice Coil Diameter1.5”
Overhang (Xmax)1.5 mm
Moving Mass (Mms)35.23gm
BL Product (BL)9.7TM
Coil Inductance (Le)0.79mH
Overall Diameter311 mm
Depth130 mm
Baffle Hole Diameter285 mm
Bolt Mount Diameter (PCD)292 mm (8 Bolts)
