Power Output | 1650W RMS Max., 1300W RMS at 10%THD, 1150W RMS at 5% THD 1050W RMS at 2% THD |
Output Regulation | ≤ 2dB, no load to full load at 1kHz |
Input Channels | 1 × Mic 1.5mV / 4.7kΩ, 1 × Aux 100mV / 470kΩ, 1 × Aux 250mV / 20kΩ, 1 × CD 250mV / 20kΩ, 1 × Line 1V / 10kΩ unbalanced, 20k balanced |
Frequency Response | 50Hz–18,000Hz ±3dB |
Signal to Noise Ratio | 60dB |
Tone Controls | Bass (100Hz) : ±8dB, Treble (10kHz) : ± 8dB |
Speaker Output | 2Ω, 4Ω & 8Ω |
Power Supply | AC: 220-240V 50/60Hz |
Protections | 2 × 30 Amp fuse in ± DC supply 12 Amp circuit breaker in AC mains, Protected against high AC mains voltage, overload & temperature |
Power Consumption | 2400VA |
Dimensions | W500 × H210 × D577 mm |
Weight | 49.0kg |

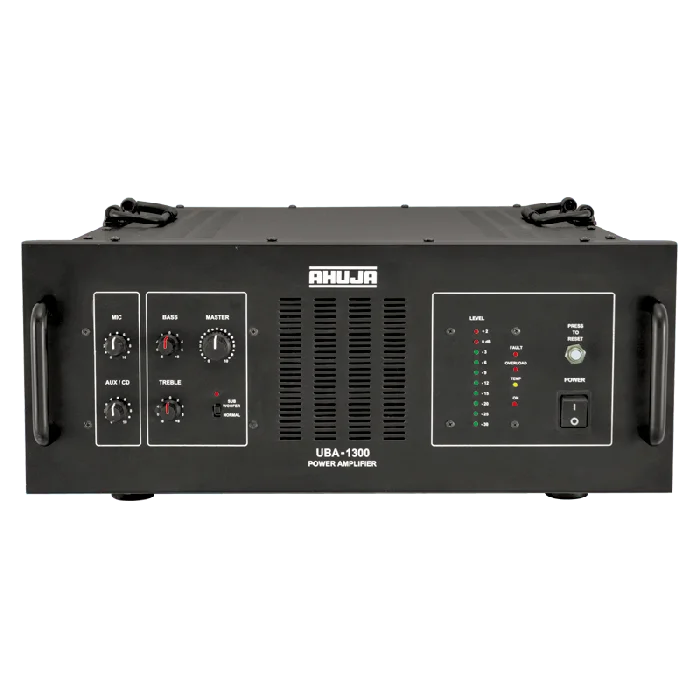

Ahuja POWER AMPLIFIERS DJ & PA POWER AMPLIFIERS UBA-1300 1300 WATTS DJ & PA POWER AMPLIFIER
Roll over image to zoom in
- Designed for use in a wide variety of PA applications and DJ performances.
- UBA-1300 is a 1300 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc.
- The amplifier has bass and treble controls which enable precise and accurate tonal setting of the programme.
- The Sub switch provided facilitates use with sub woofer.
- Line Input and Line Output have been provided to enable interconnections with other power amplifiers.
- Circuit Protector Device has been provided which safeguards the amplifier against overload and short circuit.
- The amplifier has built-in protection against over voltage in AC mains supply which is specially useful while operating on a Genset.
- Indicator LEDs for Power, Signal, Temp, Overload and Fault conditions have been provided.
- 2Ω speaker matching provided in addition to 4 & 8Ω.
