|Power Output||750W + 750W Max., 500W + 500W RMS at 10% THD 450W + 450W RMS at 5% THD, 415W + 415W RMS at 2% THD|
|Output Regulation||≤ 2 dB, no load to full load at 1kHz|
|Input Channels||Mono 2 × 200mV/100kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ|
|Frequency Response||50-15,000Hz ±3dB|
|Signal to Noise Ratio||60dB|
|Tone Controls||Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz|
|Speaker Outputs||4Ω, 8Ω, 70V & 100V for each zone|
|Power Supply||AC: 220-240V 50/60 Hz DC: 36V (3×12V Car Battery)|
|Power Consumption||AC: 1600VA DC: 16A|
|Dimensions||W510 × H220 × D440 mm|

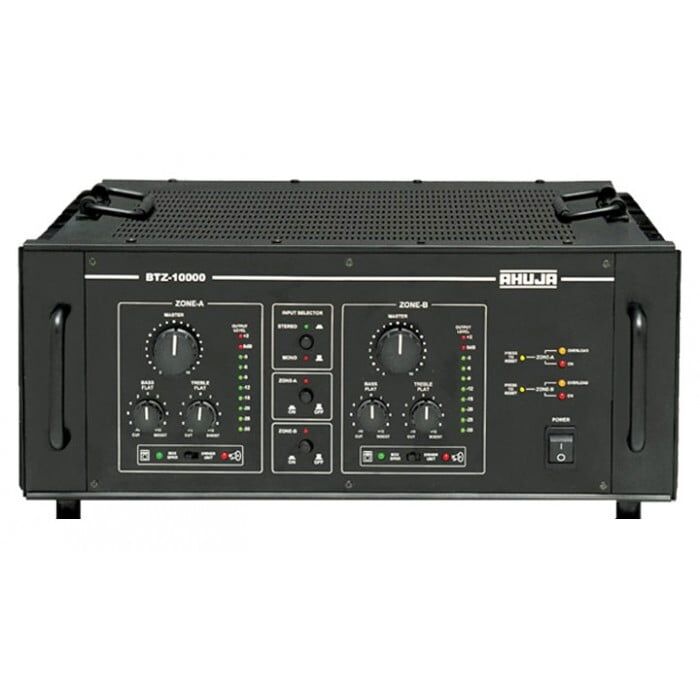

Ahuja BTZ-10000 1000 WATTS 2 ZONE PA POWER AMPLIFIER
Roll over image to zoom in
Click to open expanded view
- Ahuja model BTZ-10000 is rugged, reliable, cost-effective 1000 watts Two Zone Amplifier. BTZ-10000 is ideal for multi-speaker installations where a user needs to separately set power levels for two separate areas such as indoors & outdoors.
- Stereo Music input for DJ programmes.
- Facilitates connection and operation of two groups of speakers simultaneously on ‘Mono’ mode. Ideal for Places of Worship.
- Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively.
- Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units.
- Resettable circuit breaker for protection against overload and short circuit.
- Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Bar Graph Signal Display.
