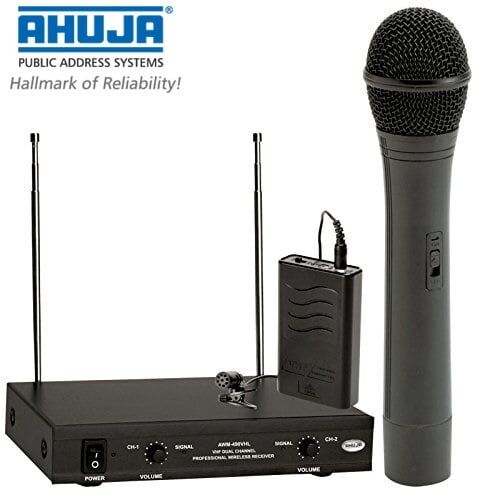

AWM490VHL Dual Channel VHF Wireless Microphone

Ahuja AWM-490VHL VHF Wireless PA Microphones

FEATURES:
  • Compact, lightweight, Dual Channel VHF Wireless Microphone System available in 5 different frequency groups.
  • Combination of a hand-held dynamic microphone & a tie-clip condenser microphone for a wide variety of applications.
  • Internal Antenna in the Microphone and two telescopic Antennas in the Receiver for clear and distortion free reception.
  • Receiver operates on 9V DC through an AC Adaptor supplied along with the system. Each microphone operates with a 9V Dry Battery.
  • Microphone with 3-position slide switch for ‘Audio On/Mute/Off’.
  • Audio output from receiver available at OUT 1 & OUT 2 individually and as mixed output at OUT 1 + 2.

Ahuja AWM490VHL Dual Channel VHF Wireless Microphone Bangladesh

HAND-HELD MICROPHONE

  • RF Output Power – 15mW (Max.)
  • Modulation Mode – FM (F3E)
  • Microphone Element – Dynamic, cardioid
  • Dynamic Range – 100dB
  • Spurious Emission – <45dB
  • Maximum Deviation – ±25kHz
  • Frequency Response – 50-15,000Hz
  • Antenna Type – Internal dipole
  • Current Consumption – <60mA
  • Battery Life-6 – 8 hrs. with 9V battery
  • Controls – Mic On/Mute/Off Switch
  • Indication – Red LED for Mic ON
  • Dimensions – Ø52 × L242 mm

TIE-CLIP MICROPHONE

  • RF Output Power – 10mW (Max.)
  • Modulation Mode – FM (F3E)
  • Microphone Element – Condenser, omnidirectional
  • Dynamic Range – 80dB
  • Spurious Emission – <45dB
  • Maximum Deviation – ±25kHz
  • Frequency Response – 80-12,000Hz
  • Current Consumption – <60mA
  • Battery Life – 6-8 hrs. with 9V battery
  • Controls – Mic On/Mute/Off Switch, Vol. Control
  • Indication – Green LED indicating power of cells
  • Dimensions – W65 × H32 × D107 mm
  • Weight – 0.11kg (w/o battery)

RECEIVER

  • Frequency Stability – ± 0.005% Quartz Crystal Controlled
  • Receiving Method – Non-diversity
  • Audio Output – Channel 1: 0-55mV/1k,, Channel 2: 0-55mV/1k, Channel 1+2: 0-55mV/1k
  • Signal To Noise Ratio – > 100dB
  • Distortion – < 0.5%
  • Frequency Response – 50-15,000Hz
  • Maximum Deviation – ± 25kHz
  • Antenna – Telescopic
  • Power Requirement – AC: 220-240V 50/60hz for AC adaptor
  • Controls – Power On/Off switch, Audio Output Volume Control
  • Indications – Red LED for Power ON, Green LED for RF recepiton for Channel-1, Green LED for RF recepiton for Channel-2
  • Dimensions – W210 × H42 × D152 mm
  • Weight – 0.70kg

Ahuja AWM490VHL Dual Channel VHF Wireless Microphone Bangladesh
