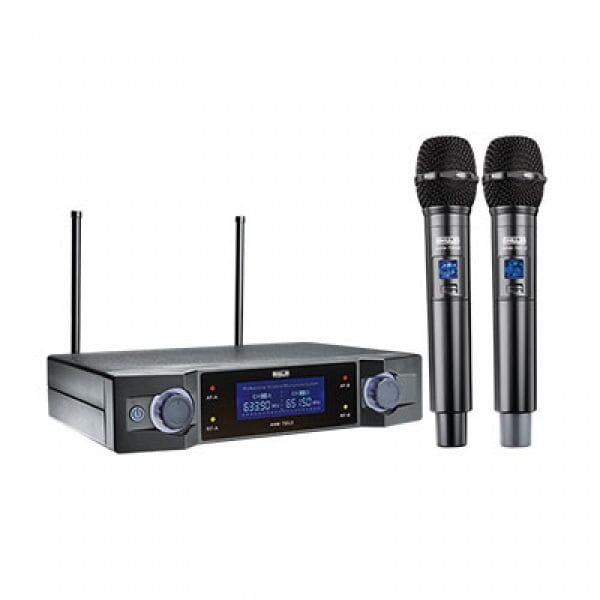

Ahuja AWM-700U2 PA Wireless Microphone

  • Elegant & affordable high performance dual channel wireless microphone available in eight pairs of frequencies.
  • Separate volume control for both channels on the front panel of the receiver.
  • Two handheld dynamic transmitters, each operating on 2 × 1.5V AA pencil cells
  • Separate balanced audio output from each channel and an unbalanced mixed output available from the receiver.
  • Receiver operates on 12V DC through an AC adaptor.

Ahuja AWM-700U2

Handheld Transmitter .
RF Output Power 10mW (Max.)
Carrier Frequency Range 630-664MHz
Frequency Stability ±0.005%
Modulation Mode FM
Microphone Element Dynamic, Cardioid
Frequency Response 50-15,000Hz
Power Requirement 3V (2 × 1.5V AA Pencil Cells)
Current Consumption < 150mA
Controls POWER ON/OFF switch
Indication Channel Frequency Display
Dimensions Ø55 (L 250) mm
Weight 0.22kg (w/o battery) approx.
Receiver .
Audio Output (Nominal) Bal. 0dBu, Unbal. -10dBu
S/N Ratio 100dB
Distortion <1%
Frequency Response 50-15,000Hz
Dynamic Range >90dB
Power Requirement 240V AC 50Hz from AC Adaptor (supplied along with)
Controls ON/OFF Switch, Volume Controls for Channel A & B
Indications LEDs for RF & Audio Signal of Channel A & Channel B, Channel Frequency Display
Dimensions W210 × H47 × D165 mm
Weight 0.42kg. approx.
