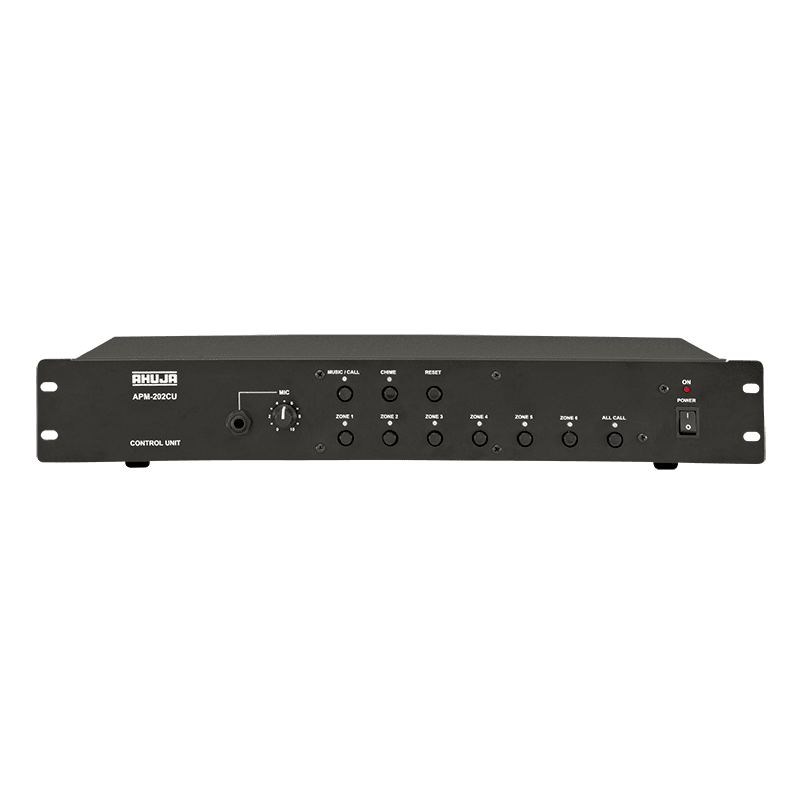

Ahuja APM-202CU Control Unit

In stock

  • APM-202CU is a rack mounting switcher / control unit which works with APM-201RM and upto 2 amplifiers to form a 6 zone zonal paging system with multi level priority and switchable background music.
  • 6 Zone Switcher / Paging Control Unit for use with APM-201RM.
  • 6 Zone Selector switches, plus ALL CALL switch.
  • Provision for two 100V input signals, one for speech and one for background music.
  • Priority of speech over background music.
  • Provision for routing background music source to selected zones.
  • Provision to make announcements from the control unit.
  • Status monitoring of all zones.

Ahuja APM-202CU

Switching Signal Level 100V (Nominal)
Inputs (Nominal) 3 x APM-201RM (1V/10k balanced), 1 x Mic (1mV/4.7k), Speech Amp (100V), Music Amp (100V), Alarm (100mV).
Switches 6 Zone Selector switches, All Call, Chime, Reset, Music/Call Selector, Power ON/OFF.
Controls Mic Level, Chime level, Alarm level
Power Supply AC 220-240V, 50/60Hz; DC 24V (2 x 12V Car Battery)
Dimensions W483 × H75 × D300
Weight 4.8kg
