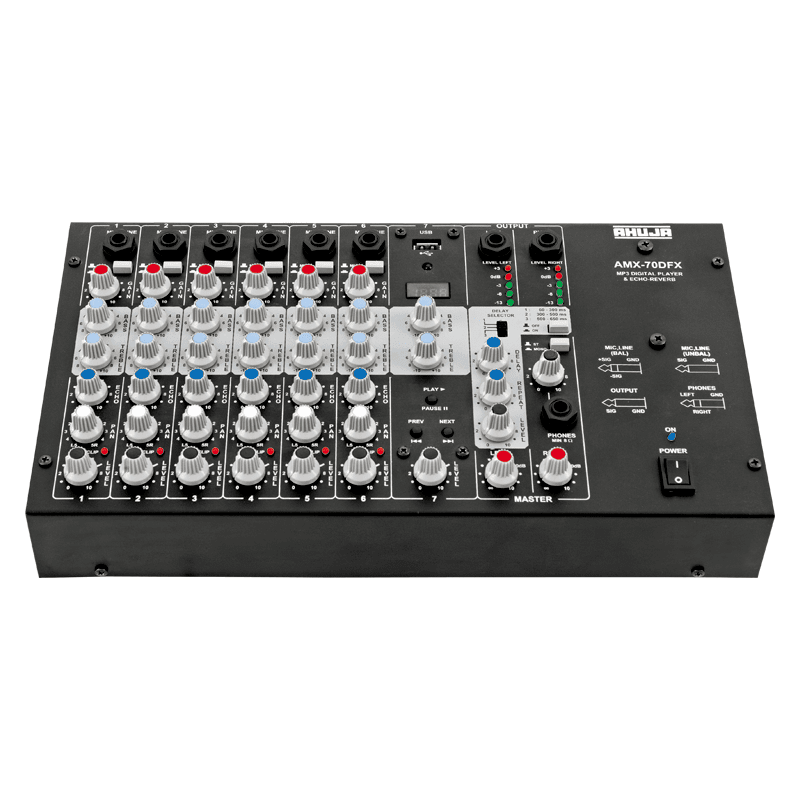

Ahuja AMX-70DFX 7 Channel with built-in Digital Player AC Operation

In stock

  • All Purpose 7 Channel PA Mixer Preamplifier
  • Each input channel has a 1/4” balanced phone jack for Mic/Line & accepts both balanced & unbalanced signals.
  • Independent USB playback channel with BASS, TREBLE and LEVEL controls.
  • Built-in digital effects processor with Delay, Repeat & Level controls.
  • Delay range selection through a selector switch.
  • Each MIC/LINE channel has Gain, Bass, Treble, PAN and Level controls with Clip LED indicator.
  • Mono output is available from either Left or Right output jacks when the switch is in ‘Mono’ position.
  • Individual five segment LED array for left and right outputs.
  • Headphone output, with volume control, for monitoring purposes.

Ahuja AMX-70DFX

Power RequirementsAC: 220-240v 50/60Hz
MIC Input (Impedance/Gain)2kΩ Balanced/62dB, 1kΩ Unbalanced/62dB
LINE Input (Impedance/Gain)20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB
Distortion< 0.1%
Frequency Response20Hz-18 kHz (-1dB)
Tone ControlsBass: ± 12dB at 100Hz, Treble: ± 12dB at 10kHz
Line Output (RATED/MAX)0dBm/+18dBm (775mV/6.5V)
Headphone Output200mV at 8W (<1%)
Delay SystemDigital Signal Processing
Delay Range Settings1: 60-300ms, 2: 300-500ms, 3: 500-650ms
Signal to Noise Ratio> 68dB
DimensionsW345 × H75 × D205 mm
