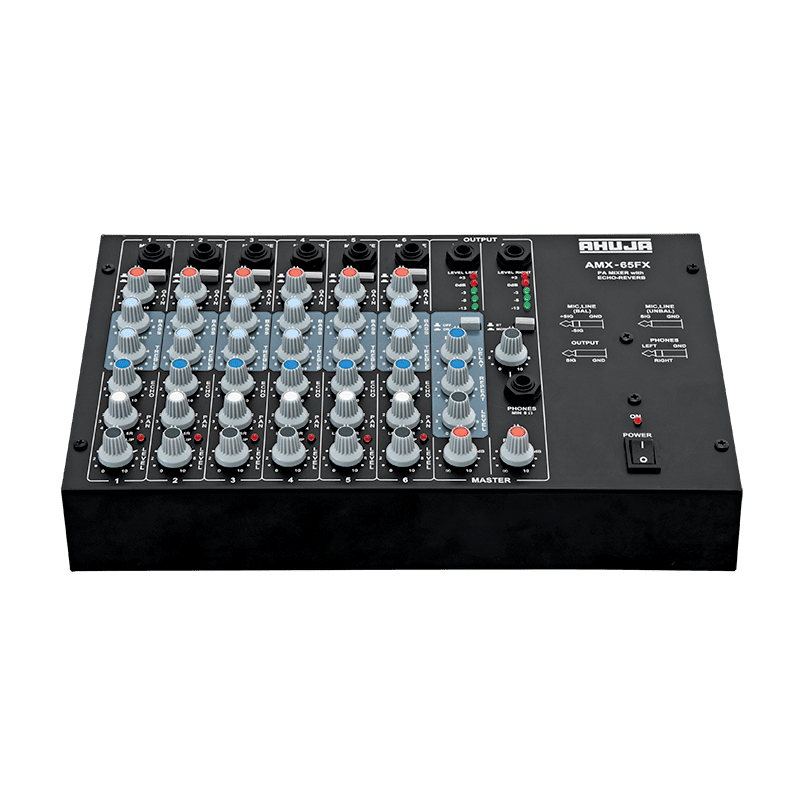

Ahuja AMX-65FX 6 Channel PA Audio Mixer AC Operation

In stock

  • Ahuja offers an elegant & rugged six channel audio mixer AMX-65FX. This compact mixer has all the basic ingredients of a professional mixer like electronically balanced MIC/LINE inputs, two band equalisation, five point output level display, clip indicators, higher overload margins etc. Ideal for use in Auditoria, Educational Institution, DJs and a variety of PA Applications.
  • Aesthetically designed six channel professional PA Mixer which is light weight & portable.
  • Upto six low impedance microphones can be connected in either balanced or unbalanced configuration, through a 6.3mm (1/4″) stereo jack socket.
  • Alternatively, each channel input can accept a balanced or an unbalanced line source like CD Player, Keyboard, Guitar Pre-amp., Drum Kit etc.
  • Each channel has a push switch to select either a MIC or LINE input.
  • GAIN Control on each channel for optimum adjustment of the input sensitivities.
  • Active bass & treble circuit in each channel for desired equalisation of the input signal.
  • Separate ECHO level control for each MIC/LINE input channel.
  • Each channel has a clip LED which glows when the level of input signal is excessive.
  • Pan control on each channel for desired distribution of the signal to left and right output channels.
  • Built-in digital effects processor with DELAY, REPEAT, LEVEL controls.
  • Line level L & R outputs through 6.3mm (1/4″) jack sockets.
  • Individual 5-segment LED array indication for accurate setting of L&R line output levels.
  • Individual master volume controls for left & right line outputs.
  • Option of Mono/Stereo mode of operation through a push switch.
  • Headphone output with volume control.
  • Power ON indication through a red LED.
  • Operates on 220 – 240V, 50Hz AC Mains.

Ahuja AMX-65FX

MIC INPUT (Impedance/Gain)2kΩ Balanced/62dB, 1kΩ Unbalanced/62dB
LINE INPUT (Impedance/Gain)20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB
THD<0.1%
FREQUENCY RESPONSE20-18,000Hz (-1dB)
EQUALISATIONBass: ± 12dB at 100Hz, Treble: ±12dB at 10kHz
HEADPHONE OUTPUT200mV at 8W, THD (<1%)
DELAY RANGE20 – 300ms
LINE OUTPUT (L/R) Nominal0dBm (775mV)
LINE OUTPUT (L/R) Maximum+18dBm (6.5V)
OUTPUT IMPEDANCE600Ω
SIGNAL TO NOISE RATIO> 68dB
CLIP LED INDICATION4dB prior to true clip
POWER SUPPLYAC: 220-240V 50Hz
PROTECTIONAC: Fuse 1Amp (T 1A L)
DIMENSIONSW310 × H75 × D205 mm
WEIGHT2.60kg
