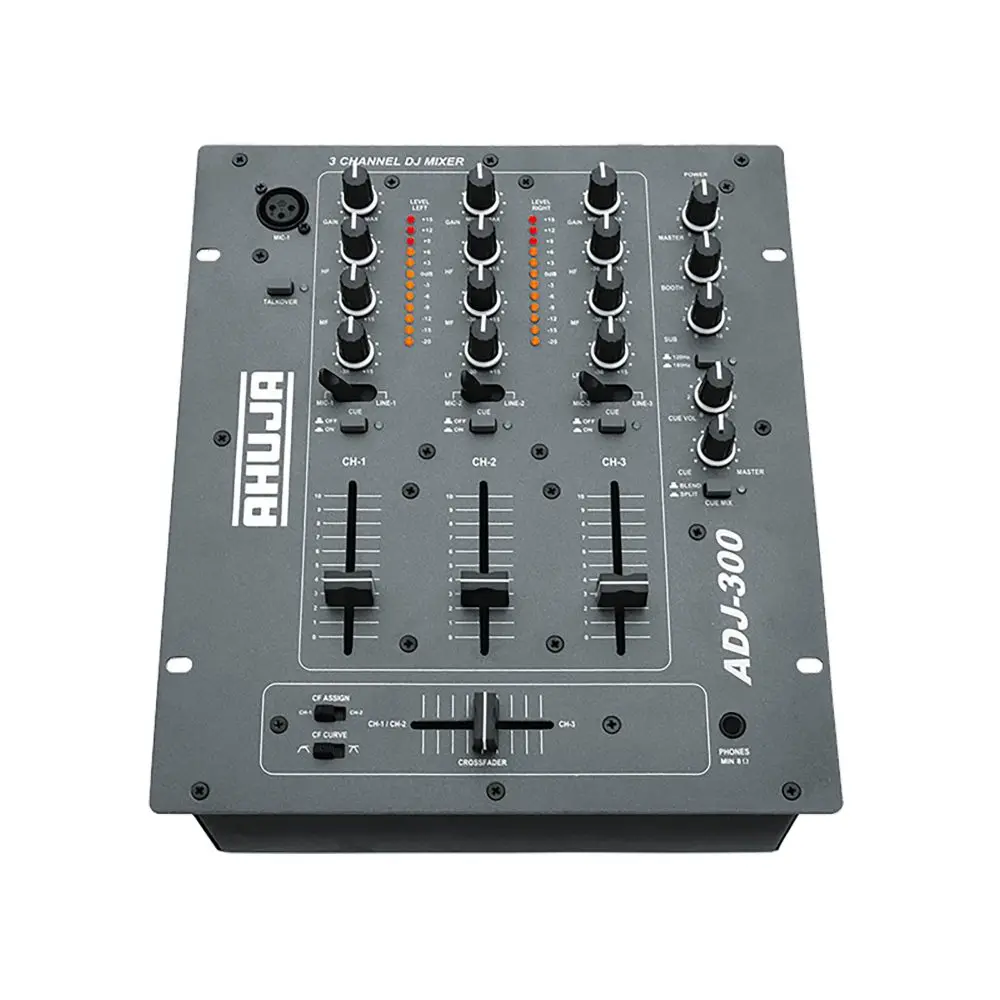

Ahuja ADJ-300 DJ Mixer

Ahuja PA BD
Roll over image to zoom in
Click to open expanded view

Out of stock

  • Rugged, reliable and easy to operate 3-channel DJ mixer. Ahuja PA BD
  • Three MIC inputs alternate to three stereo LINE/CD inputs.
  • MIC-1 is balanced XLR input with TALKOVER priority over other inputs.
  • Each channel has a GAIN control, 3 band active EQ, MIC-LINE selector switch, CUE ON/OFF switch and channel fader control.
  • Ultra smooth slide control for CROSSFADER function.
  • Slide switch for selecting the desired crossfade curve i.e. Flat or Steep.
  • Master, Booth and Rec stereo outputs through RCA socket.
  • Mono Subwoofer output with two frequencies of 120 & 180Hz.
  • Stereo headphone output with CUE volume control.
  • CUE MIX switch for selecting between BLEND & SPLIT function.
  • Independent volume controls for MASTER, BOOTH, SUB and CUE outputs.
  • Individual 12 segment LED array for indicating LEFT & RIGHT output levels.
Category: Tags: ,

Ahuja PA BD ADJ-300

MIC Inputs 2mV/4.7kΩ
LINE Inputs (L&R) 100mV/10kΩ
Distortion < 0.08%
Frequency Response 20Hz – 22kHz (-3dB)
Tone Controls Bass : -30dB / +15dB at 100Hz, Mid : -30dB / +15dB at 1kHz, Treble : -30dB / +15dB at 10kHz
Output (Nominal) MASTER: 1V (BAL), BOOTH: 1V (UNBAL), RECORD: 500mV (UNBAL), SUBOUT (Mono): 1V (BAL), Headphones: 200mV@ 8W
Sub Crossover Frequencies 120Hz and 180Hz (Selectable)
Signal to Noise Ratio >80dB
Crosstalk < 65dB
Talkover -15dB attenuation
Power Requirements AC: 220-240V 50/60Hz
Dimensions W260 × H125 × D310 mm
Weight 4.50kg
Weight 4.50kg
