Ahuja CCS-2300 Counter Communication System AC Operation

Roll over image to zoom in

Status:In stock

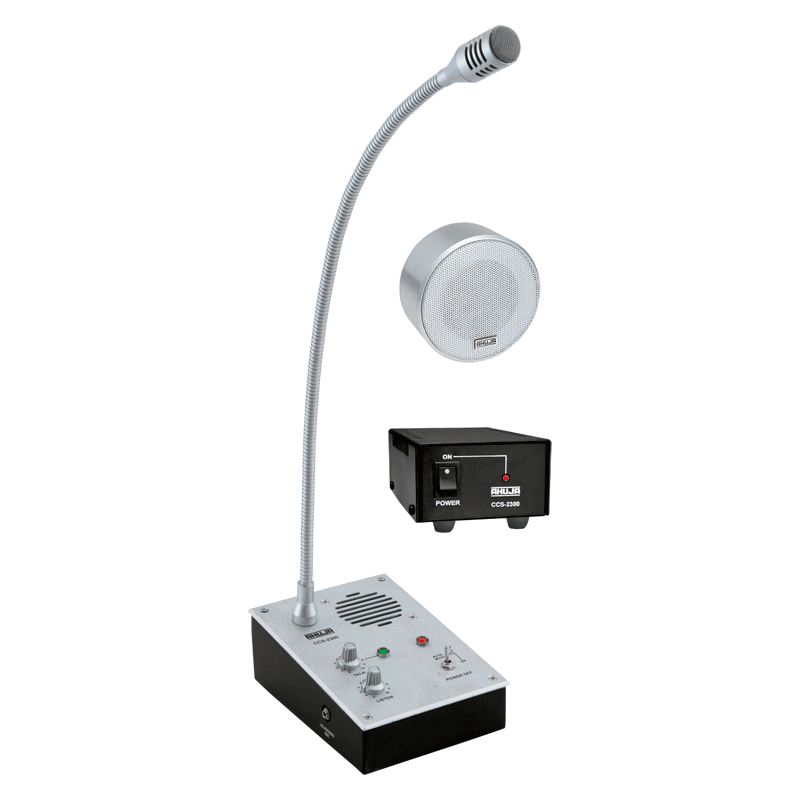

AHUJA introduces CCS-2300, a two-way counter communication system, exclusively designed for easy and effective conversation across counters with transparent security barriers. It consists of an attendant unit, a customer unit and a power supply unit, which are easy to install and simple to connect through dedicated cables as supplied with the system.
Unique design, pleasing aesthetics & rugged construction.
Two-way, hands-free communication.
Easy, hassle-free installation.
Compact & elegant table top attendant unit with 20” long gooseneck microphone for strain-free usage.
A 3.5mm jack socket is provided for connecting a headband microphone like Ahuja HBM-50. This is useable by the attendant as an alternate to the fixed gooseneck microphone.
Separate controls for adjusting the speech levels during Talk & Listen modes of operation.
Special Auto-Mute ON/OFF option provided through a toggle switch. In Auto-Mute ON condition, the customer’s microphone is partially muted if it is not used for 30 sec. approx. This facility prevents the attendant from being disturbed by unwanted outside noise.
The customer’s unit has an efficient speaker and a sensitive condenser cartridge, mounted in a beautifully designed housing.
Attendant’s microphone has voice priority over the customer’s microphone.

Categories: Uncategorized, Mixer & Zone Selector, PA System Cable & Accessories Tag: Ahuja CCS-2300

Ahuja CCS-2300

Output	2W (Max.) in each amplifier
Microphone Element	Electret Condenser in both the units
Auto Mute `ON’	Enables after 30 seconds (approx.)
Power Requirement	AC: 220-240V, 50/60Hz
Protections	AC Fuse 1 × 0.5A
Dimensions	Attendant Unit: W116 x H65 x D170 mm (w/o gooseneck), Customer Unit: Ø98 x D52 mm, Power Supply Unit: W85 × H58 × D150 mm
Weight	Attendant Unit: 1.3kg, Customer Unit: 0.55kg, Power Supply Unit : 0.93kg
Accessories	1 No. of fuse 0.5A, 2 Nos. of M4 moulded screws, 2 Nos. of self adhesive DUAL LOCK tape, 4.5mtrs. of interconnecting cable for Customer unit
